Install the switch

7 steps

Before you start

  • Switch off the main power at the MCB and check it is off with a voltage tester. Keep it off until the glass is fitted.
  • Have a qualified electrician install it. Use insulated tools and gloves, keep the work area dry and label the wires.
  • You need a 12 module metal box, 208mm x 135mm (8"x6") or 232mm x 143mm (9"x6"). Use a flat-headed screwdriver and the console screws provided.
  • Light switches (L): up to 6A resistive each. One light or fan per switch, never in series or parallel. LED/CFL: max 40W per switch.
  • LED strips: 240V mains strips only, never 12V or 24V. High load (H): up to 16A resistive. Two-way (T1, T2): 6A each.
  • Fan (F): up to 100W fan only, never LED lights, LED strips or CFL. Sockets: up to 6A each, each with an earth wire.
  1. Remove the front glass

    Remove the front glass

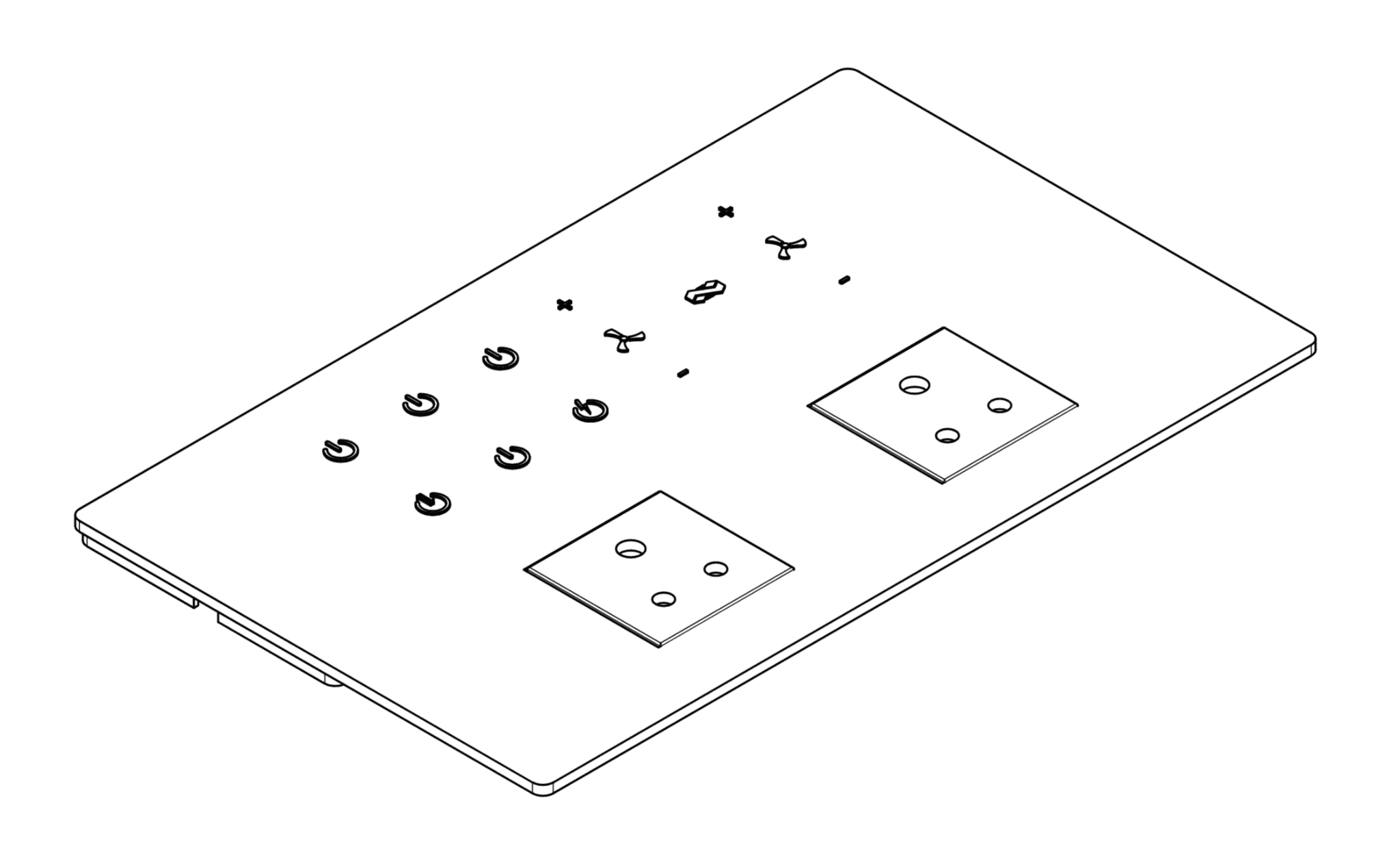

    Use a flat-headed screwdriver to gently lift the front glass panel off the module.

    Do not touch the circuit board.

    Stuck on this step? WhatsApp us a photo
  2. Connect neutral and power

    Connect neutral and power

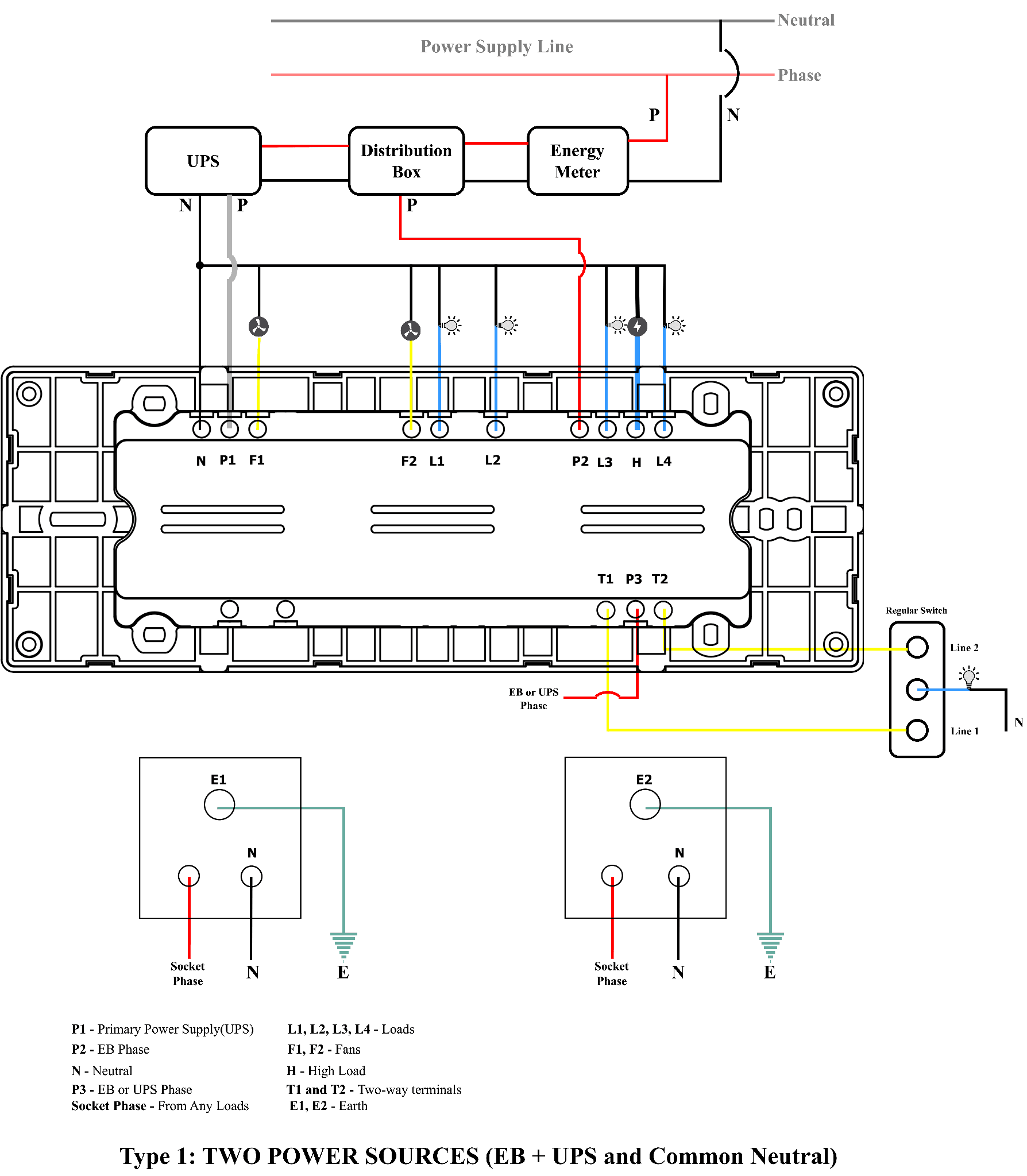

    Follow the wiring drawing. Connect neutral to N. Connect phase from UPS or EB to P1, and from EB to P2.

    To keep UPS and EB loads separate, connect P1 to UPS and P2 to EB. No separation needed? Loop P1 and P2 and connect them to EB or UPS.

    Stuck on this step? WhatsApp us a photo
  3. Connect your lights and appliances

    Connect your lights and appliances

    Connect each load wire to its terminal: L1–L4 = your lights, F1 and F2 = fans, H = high load.

    P1 powers F1, F2, L1 and L2. P2 powers L3, L4 and H.

    Stuck on this step? WhatsApp us a photo
  4. Connect the sockets

    Connect the sockets

    Connect an earth wire to E1 and E2. Feed each socket's phase from a load terminal or from the main supply.

    A socket fed from a load terminal turns on and off with that switch. Fed from the main supply, it is always on.

    Stuck on this step? WhatsApp us a photo
  5. Connect the two-way switch

    Connect the two-way switch

    Connect P3 to the phase from your distribution board. Connect T1 and T2 to T1 and T2 of the other two-way switch.

    The other switch can be an iotics switch or a regular two-way switch. On a regular switch, connect its phase terminal to the light.

    Stuck on this step? WhatsApp us a photo
  6. Fix the module to the box

    Fix the module to the box

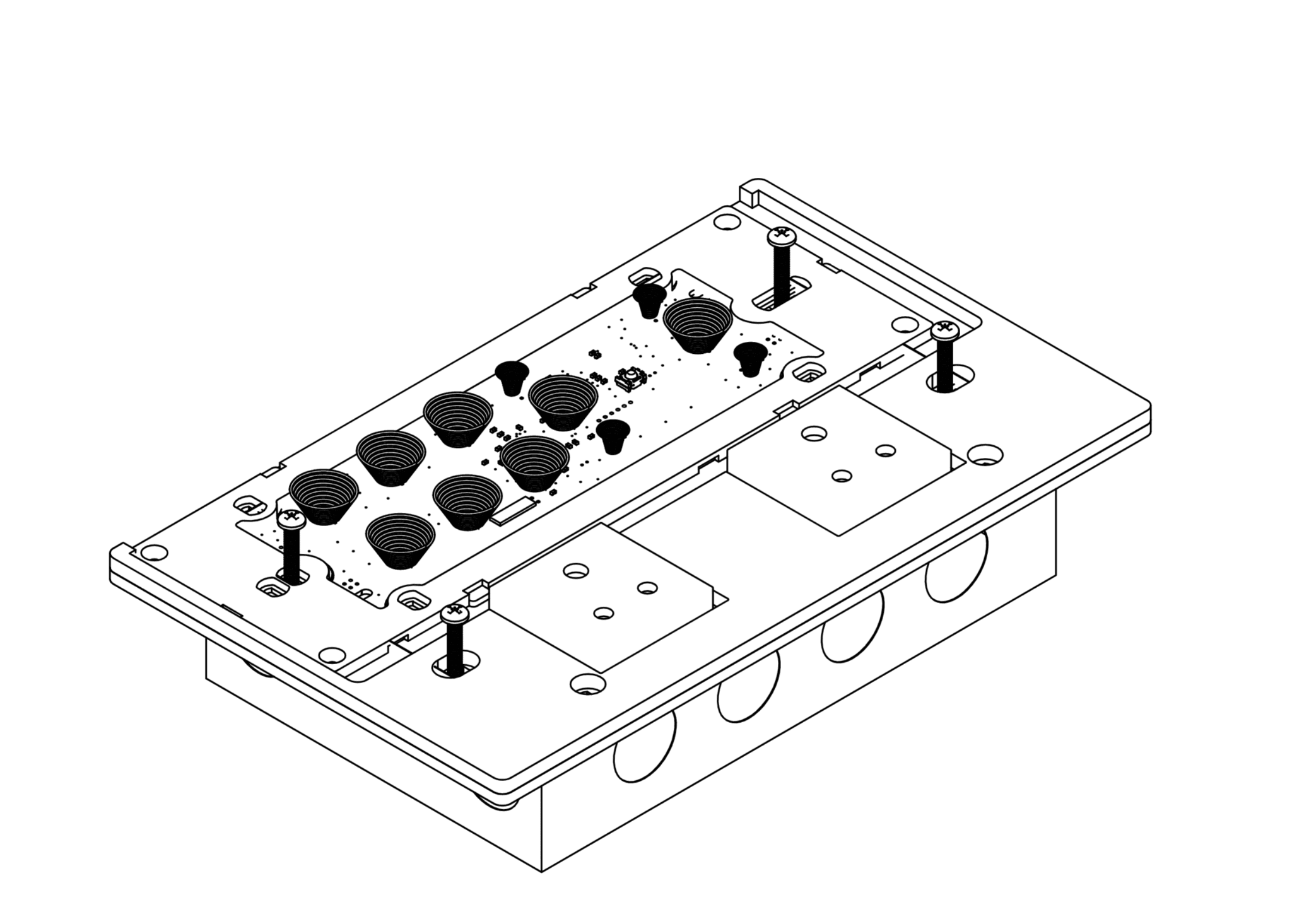

    Use the console screws from the box to fix the module to the 12 module metal box.

    Before you fix it, check every copper wire end is tightly twisted in its terminal. Tape any exposed joints.

    Stuck on this step? WhatsApp us a photo
  7. Fit the glass and switch on

    Fit the glass and switch on

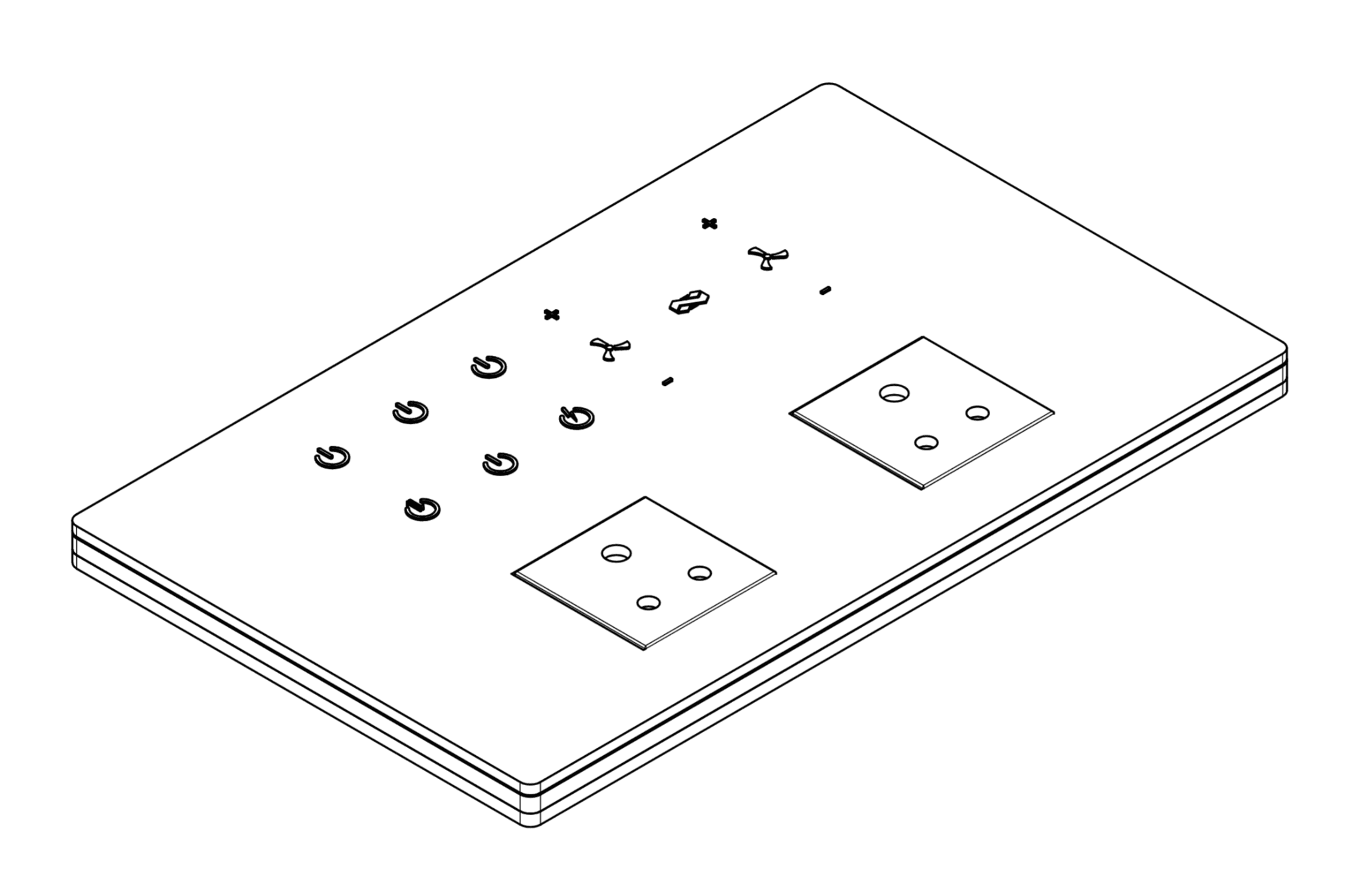

    Line up the glass and press it until all four corners lock. Then switch the main power back on.

    If touch does not respond after you fit the glass, switch the main power off and on again. Fitting the glass changes the touch capacitance.
