Specs, wiring & warranty — Doorbell
Technical specifications
| Colours | Black & White |
|---|---|
| Power Source | AC 240V 50Hz |
| Module | 2 (Doorbell) |
| Load Type | AC Doorbell, DC Doorbell with Built-in Battery. |
| Self Consumption | ~1.6W |
| Operating Temp | -10°C to +55°C |
| Dimension | 88mm x 88mm x 43mm |
| Enclosure Material | ABS (FR Grade) |
| Net Weight | 0.19kg |
Wiring drawing
| Terminal | Meaning |
|---|---|
| N | Neutral |
| P | Phase UPS/EB |

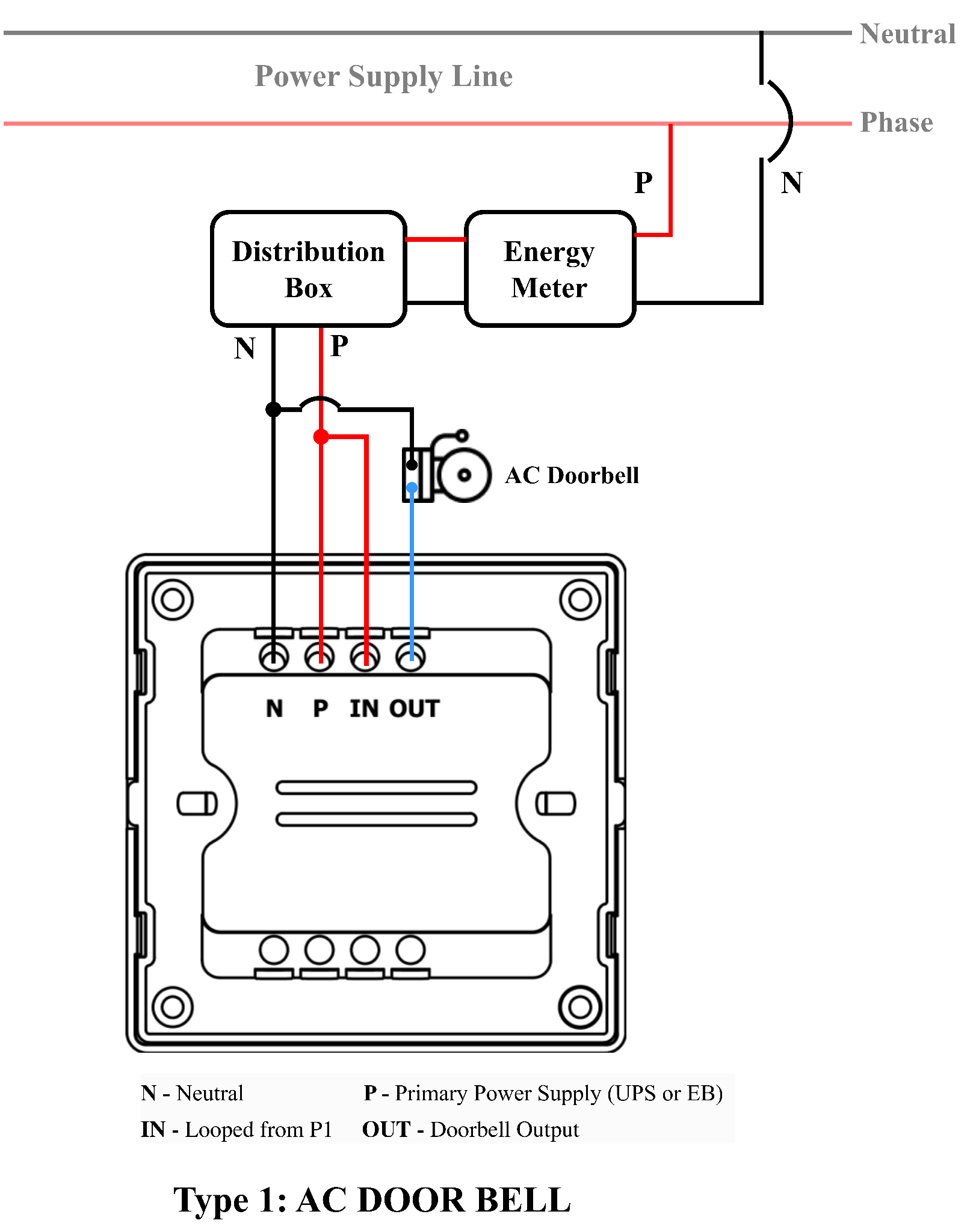

- Type 1: AC Doorbell: The phase and neutral for the AC doorbell are from EB or UPS. In this scenario, the phase and neutral connections will be as follows: The UPS or EB phase is connected to P, providing power to the device. The IN is looped from P. The OUT is connected to the doorbell input. The neutral is connected to N.
- Type 2: DC Doorbell (Built-In Battery): The phase and neutral for the DC doorbell are from EB or UPS. In this scenario, the phase and neutral connections will be as follows: The UPS or EB phase is connected to P, providing power to the device. The IN and OUT are connected to the doorbell terminals since it has a built-in battery. The neutral is connected to N.
In the box
- Touch Doorbell × 1
- Console Screws × 2
- Instruction Manual × 1
Warranty
3 years
- iotics Technology Private Limited undertakes to replace or repair, at its discretion, products should they become defective solely as a result of any manufacturing defects for a period of 3 years from the date of purchase.
- The guarantee will be valid only if installation procedures / maintenance is carried out by a qualified professional electrician and the product has been used in a specific way and for the specified purposes as mentioned in the user's manual.
- Loss or damages resulting from unauthorised adaptations/adjustments/tampering/improper installation of the product are not covered.
- Accidental/Physical/Water damages and damages due to High Voltage burnouts are out of the purview.
- Manufacturer takes no direct, indirect or any type of consequential liability of whatsoever nature under any condition, of customer's appliances functioning or malfunctioning of his/her appliance by or after buying product.
- The guarantee does not extend to cover consequential loss or damage or installation cost arising from the defective product.
