Install the switch — 1 Switch + 1 Plug
Before you start
- Switch off the main power at the MCB and check it is off with a voltage tester. Keep it off until the glass is fitted.
- Have a qualified electrician install it. Use insulated tools and gloves, keep the work area dry and label the wires.
- You need a 4 module metal box, 135mm x 78mm (5"x3"). Use a flat-headed screwdriver and the console screws provided.
- Light switches (L): up to 6A resistive each. One light or fan per switch, never in series or parallel. LED/CFL: max 40W per switch.
- LED strips: 240V mains strips only, never 12V or 24V. Socket: up to 6A, with an earth wire.
- Stuck on this step? WhatsApp us a photo

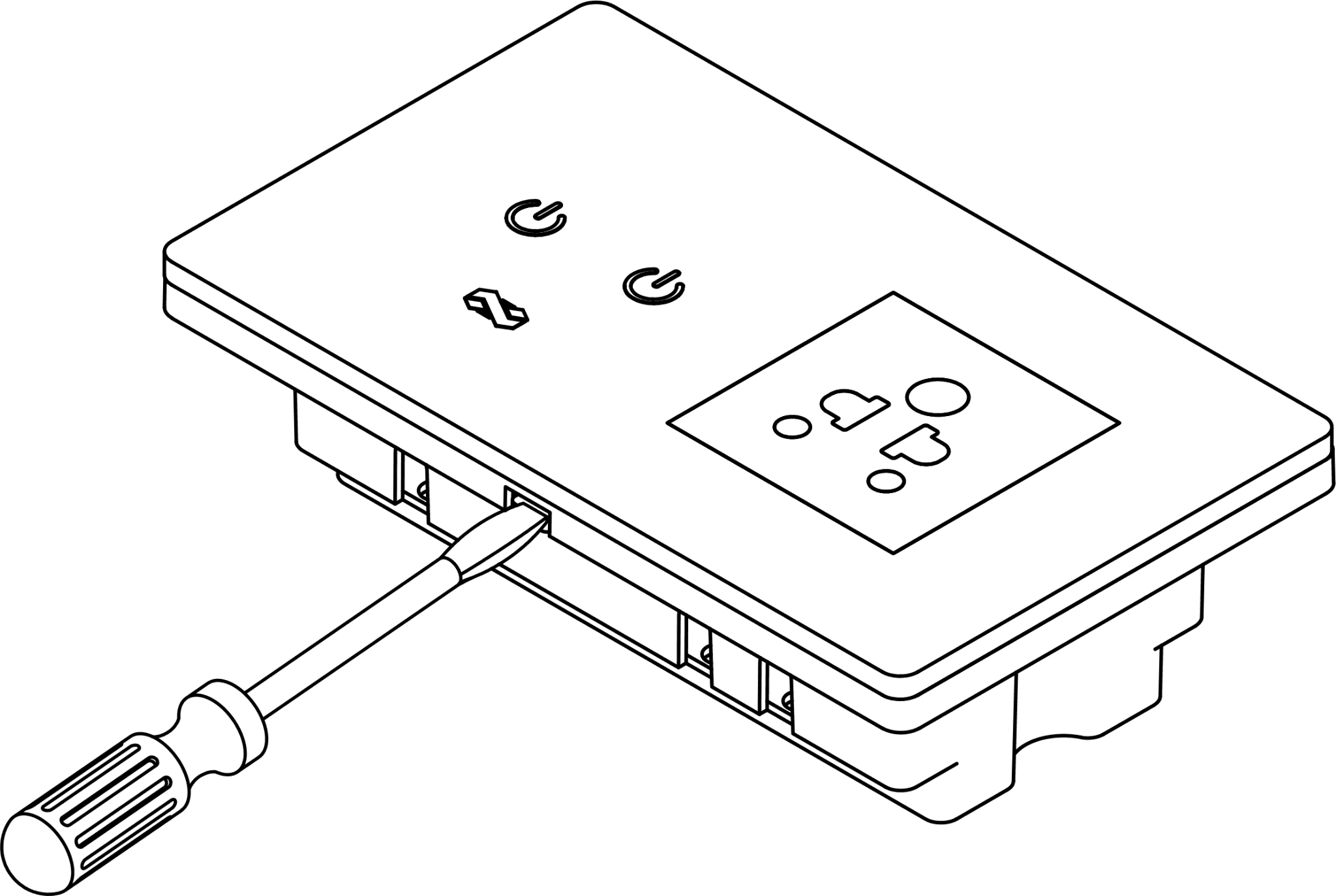

Remove the front glass
Use a flat-headed screwdriver to gently lift the front glass panel off the module.
Do not touch the circuit board.
- Stuck on this step? WhatsApp us a photo
Connect neutral and power

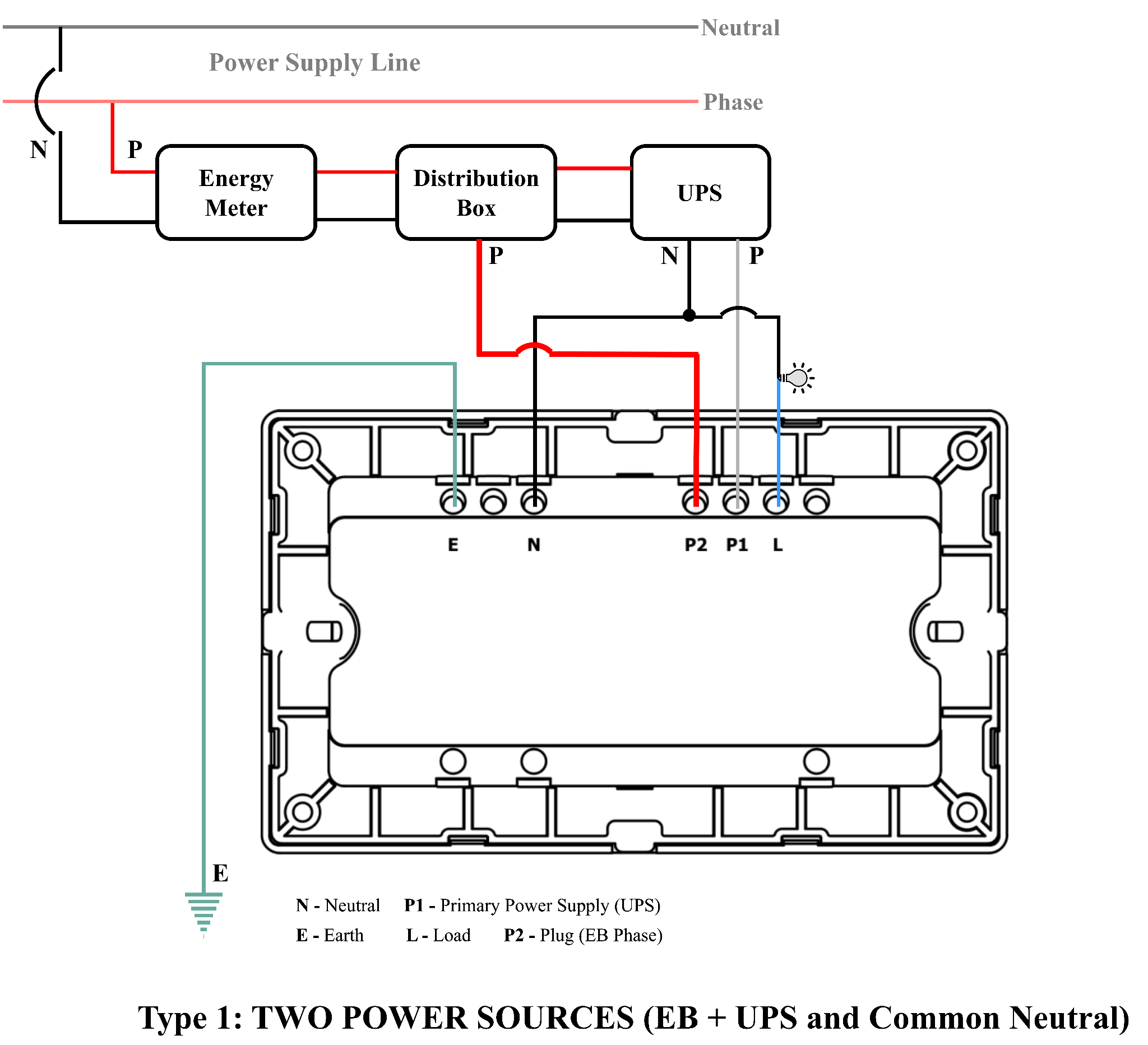

Follow the wiring drawing. Connect neutral to N and earth to E. Connect phase from UPS or EB to P1.
- Stuck on this step? WhatsApp us a photo
Connect your lights and appliances
Connect your light to L.
P1 powers the switch and L.
- Stuck on this step? WhatsApp us a photo
Connect the socket
Connect the socket supply to P2. The earth wire goes to E.
To keep UPS and EB separate, connect P1 to UPS and P2 to EB. Otherwise loop P1 and P2. The socket takes up to 6A.
- Stuck on this step? WhatsApp us a photo

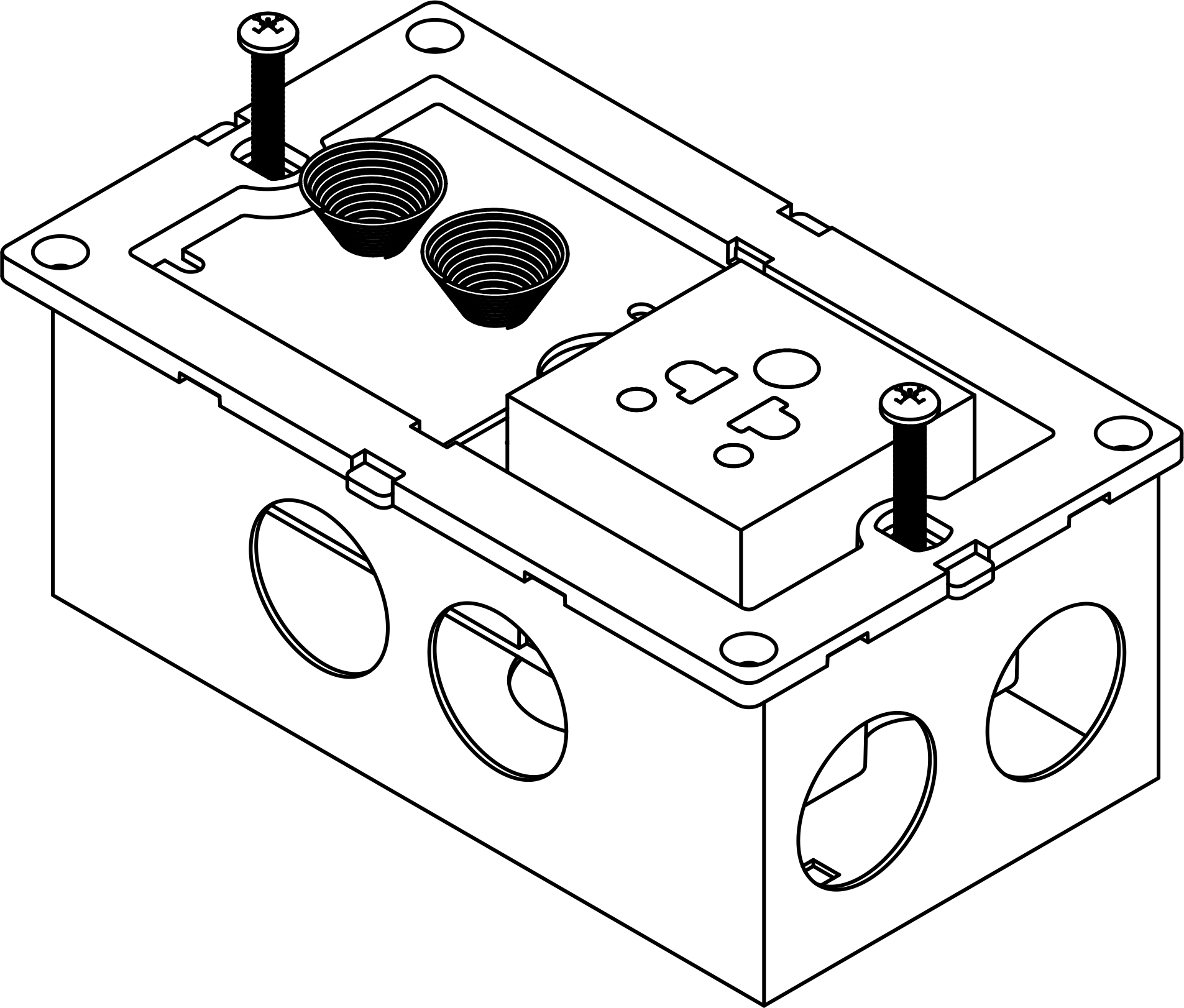

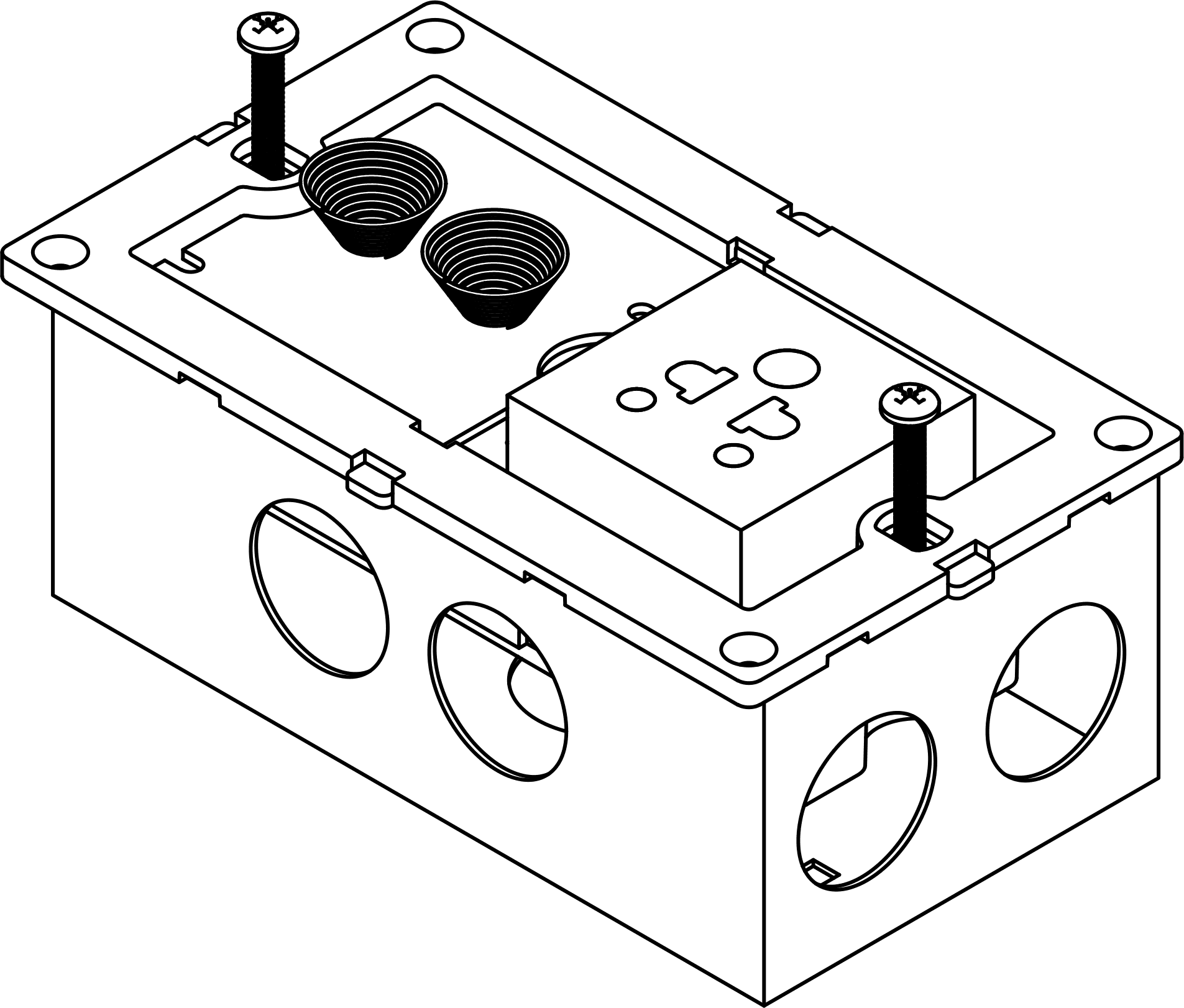

Fix the module to the box
Use the console screws from the box to fix the module to the 4 module metal box.
Before you fix it, check every copper wire end is tightly twisted in its terminal. Tape any exposed joints.
- Stuck on this step? WhatsApp us a photo

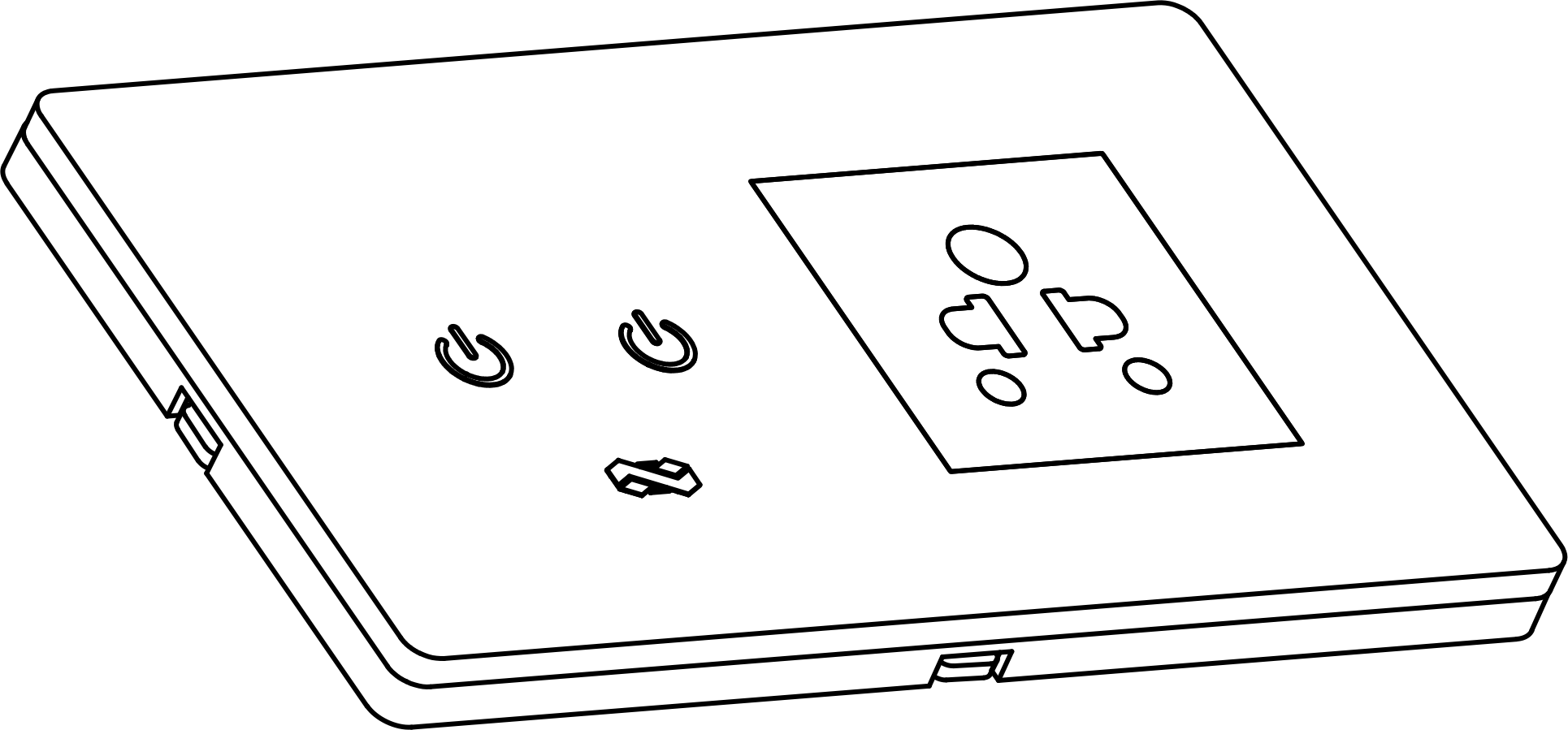

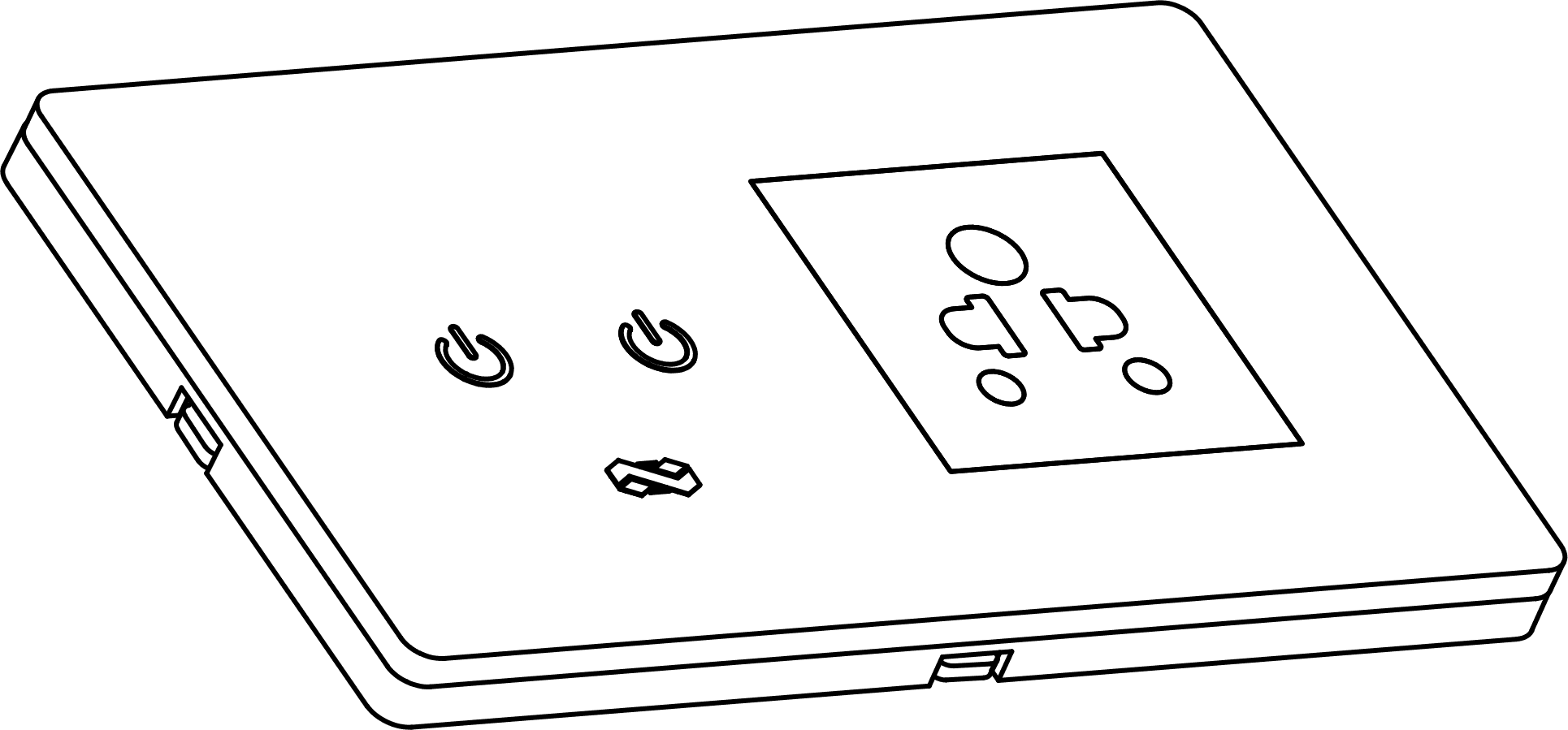

Fit the glass and switch on
Line up the glass and press it until all four corners lock. Then switch the main power back on.
If touch does not respond after you fit the glass, switch the main power off and on again. Fitting the glass changes the touch capacitance.
