Install the switch — 12 Switch + 2 Plug
Before you start
- Switch off the main power at the MCB before you start. Keep it off until the glass is fitted.
- Have a qualified electrician do the installation. Take extra care when connecting phase and neutral wires.
- You need a 12 module metal box, 208mm x 135mm (9”x5"), plus a flat-headed screwdriver and the console screws from the box.
- Light switches: up to 6A resistive each, one light or fan per switch — never in series or parallel. LED/CFL: max 40W per switch.
- High load (H): up to 16A resistive. LED strips: 240V mains only, never 12V or 24V.
- Stuck on this step? WhatsApp us a photo
Remove the front glass

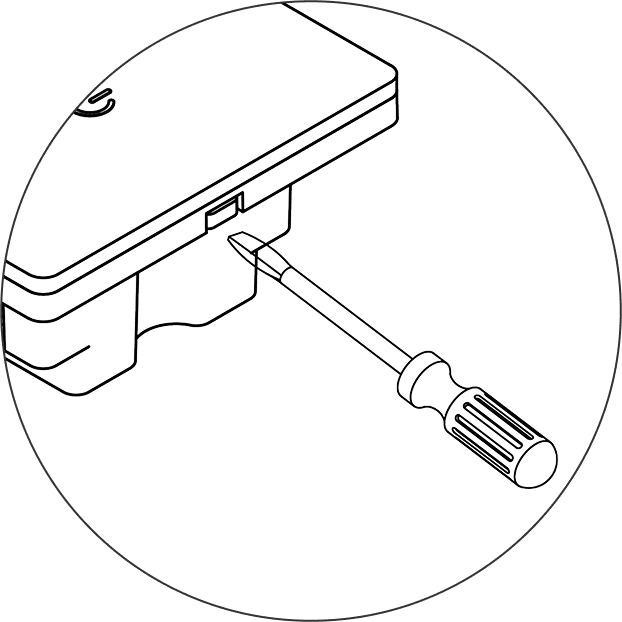

Use a flat-headed screwdriver to gently lift the front glass panel off the switch module.
Connect the wires
Terminal legend for this model is pending — follow the wiring drawing printed in the box or contact support.
- Stuck on this step? WhatsApp us a photo
Fix the module to the box

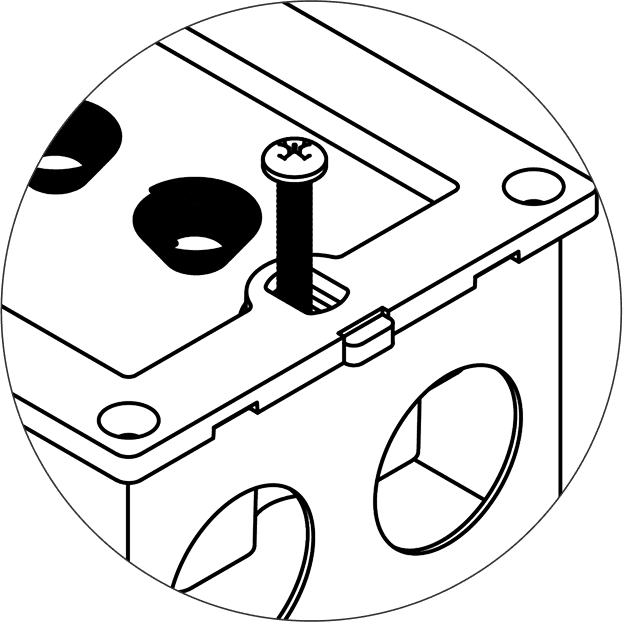

Use the console screws from the box to fix the switch module to the metal box.
Before you fix it, check that every copper wire end is tightly twisted inside its terminal.
- Stuck on this step? WhatsApp us a photo
Fit the glass and switch on

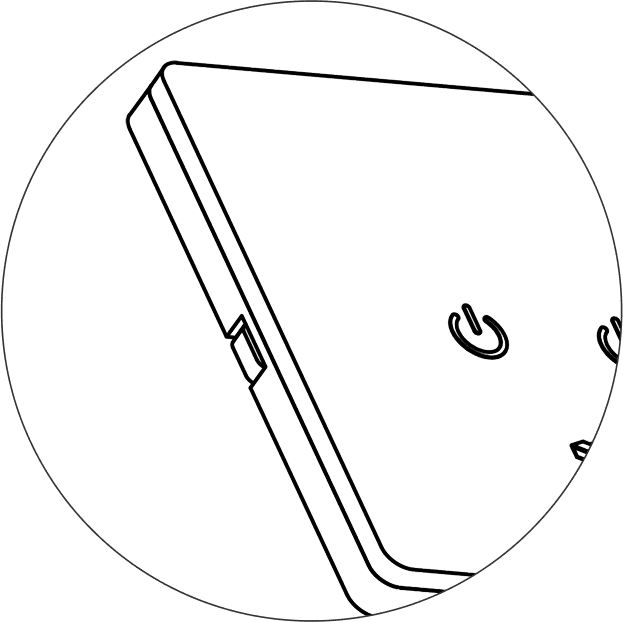

Clip the front glass back onto the switch module. Then switch the main power back on.
If touch does not respond after you fit the glass, switch the main power off and on again. Fitting the glass changes the touch capacitance.
