Technical specifications
| Power Source | AC 240V 50Hz |
|---|---|
| Module | 12 (6 Switches, 2 Fans & 2 Plugs) |
| Max Load (Per Switch) | GLS & Halogen Max.200W LED & CFL Max.40W |
| Max Load (Per Fan) | Max.100W |
| Max Load (High load Switch) | AC Upto 2000W (~2 Ton AC with EER > 3.5) |
| Max Load (Plug) | 6 Amps |
| Self Consumption | ~2W |
| Wireless Standard | IEEE 802.11 b/g/n |
| Operating Temp | -10°C to +55°C |
| Dimension | 247mm x 88mm x 43mm |
| Enclosure Material | ABS (FR Grade) |
| Net Weight | 0.5 kg |
| Remote control distance | 25 ft |

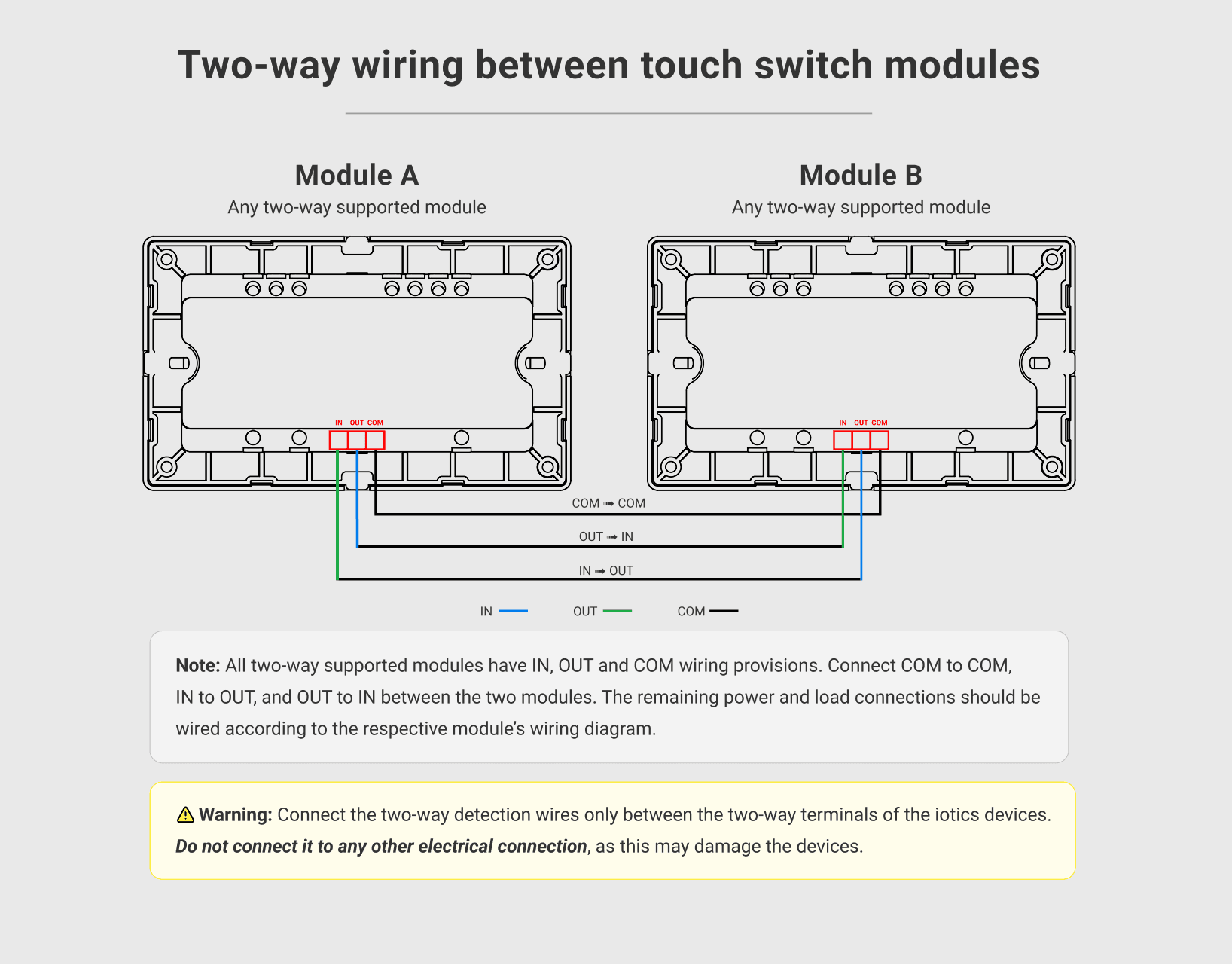

Wiring drawing
- Note: When the Two-Way Load Detection feature is enabled, the connected load must be wired according to the wiring diagram. Incorrect or incomplete wiring may prevent the two-way switching feature from functioning properly.
- You can enable or disable this feature using the Iotics mobile app or the IR remote.
In the box
- Touch Switch 6S2F2P × 1
- Remote × 1
- Console Screws × 4
- Manuals (Instruction Manual, Apple Homekit Manual, Wiring Manual) × 3
- Two-way Detection Wire × 1
Warranty
3 years
- Loss or damages resulting from unauthorized adaptations/adjustments/tampering/improper installation of the product are not covered. Also, accidental/physical/water damage and damage due to high voltage burnouts are out of the purview.
- The product has to be used in a specific way and for the specified purposes well specified in the user's manual. Any deviation/s found in usage may cause malfunction in the product and may lead to any kind of failure.
- The manufacturer takes no direct, indirect or any type of consequential liability of whatsoever nature under any condition, of customer's appliances functioning or malfunctioning of his/her appliance by or after buying the product.
- Iotics Technologies P. Ltd. owns liability for this product not exceeding the selling price of the product in any circumstances.
- Iotics Technology Private Limited undertakes to replace or repair, at its discretion, products should they become defective solely as a result of any manufacturing defects for a period of 3 years from the date of purchase.
- The guarantee will be valid only if installation procedures / maintenance are carried out by a qualified professional electrician and the product has been used in a specific way and for the specified purposes as mentioned in the user's manual.
- Accidental/Physical/water damage and damage due to high voltage burnouts are out of the purview.
- The guarantee does not extend to cover consequential loss, damage or installation costs arising from the defective product.
Safety
- Do not install the device without turning off the main power supply.
- Do not connect the glass panel without turning off the main power supply.
- For each Load L, Do not connect loads greater than 6A. Each light switch is rated up to 6A resistive only.
- For Load H, Do not connect loads greater than 16A. High Load switch is rated up to 16A resistive only.
- Each Fan switch is capable of supporting a maximum of 200W resistive load or a maximum of 100W Fan / Inductive load only.
- Do not connect LED lights, LED strips or CFL fixtures to the Fan switch.
- Take extra precaution while connecting phase and neutral wires to the device and the load.
- Connect the two-way detection wire only between the two Iotics devices. Do not connect it to any other wire or electrical connection.
- Do not connect loads in series or in parallel to one 6A light switch. Only connect single light or single fan loads to each 6A switch.
- Only a single load (6A) with a maximum of 40W is supported in cases of LED & CFL fitting. Anything more may weld the switch contacts and leave the load in a permanently ON state.
- 12V And 24V power supply based LED light strips are NOT supported in 6A light switches. 240V Mains Voltage LED Strip Lights are supported in 6A light switch.
- Relay - 10 Amps - Res.1000W / Ind.300W
- TRIAC - 16 Amps - Ind.100W
